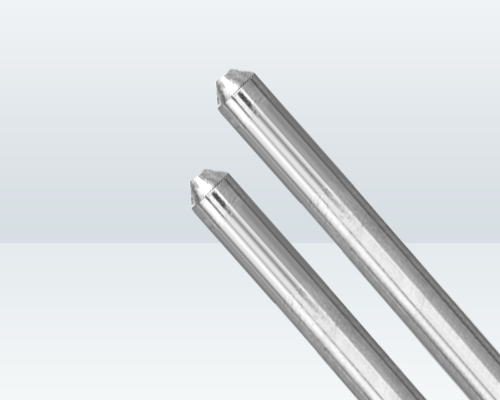

Zinc coated exteriors are hot dip galvanized for protection against corrosion. In accordance with ASTM Spec. A153-67 surfaces are rigidly inspected to eliminate seams, silvers and other defects. Tensile strength is not less then 76000 psi. Steel confirms to grade ASTM A-529/Grade 50 or equivalent. Core steel meets all requirements to resist bending, prevent excessive mushrooming of the top and distortion of rod when installed under normal driving conditions.
SPECIFICATION
| Cat.No | NominalDia.in inches | Length in feet | Packing Sub Bndls./Master Bandls |
Wt./100 pcs in Ibs |
| KV 124 | 1/2" | 4 | 20/200 | 267 |
| KV 125 | 5 | 20/200 | 334 | |
| KV 126 | 6 | 20/200 | 400 | |
| KV 128 | 8 | 20/200 | 534 | |
| KV 1210 | 10 | 20/200 | 667 | |
| KV 584 | 5/8" | 4 | 10/100 | 400 |
| KV 585 | 5 | 10/100 | 500 | |
| KV 586 | 6 | 10/100 | 600 | |
| KV 588 | 8 | 10/100 | 800 | |
| KV 5810 | 10 | 10/100 | 1000 | |
| KV 38 | 3/4" | 8 | 5/50 | 1200 |
| KV 38 | 10 | 5/50 | 1500 |
